MATERIALS FOR BATTEN FLOORS

H 4.0

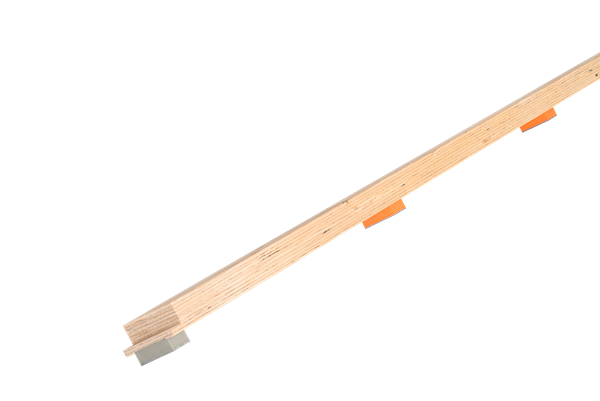

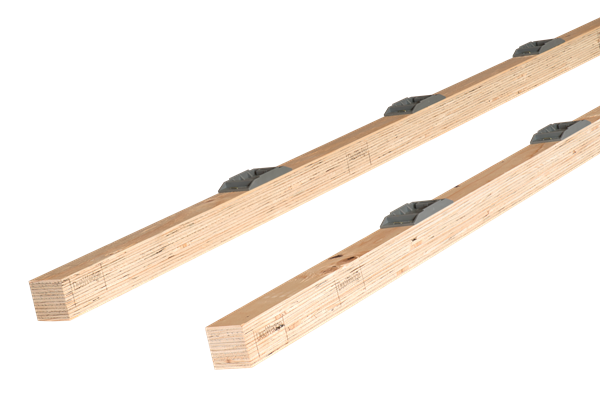

BASIC BATTEN UNOBAT 62+
UPPER BATTEN DUOBAT 120+

Item no. 099270

Unobat 62+: For use as basic batten
Duobat 120+:  For use as upper batten

Bundles of 16 pcs. (length 3.6 m)

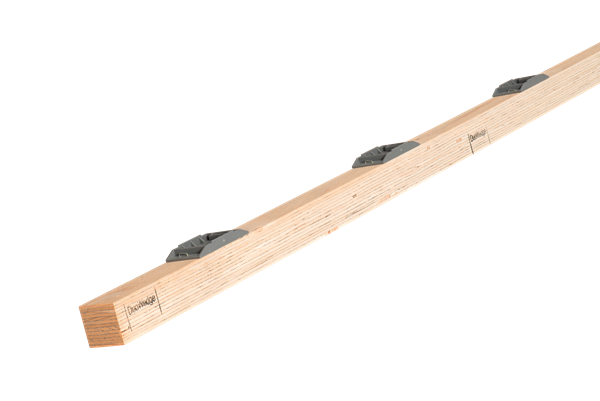

LOWER BATTEN, DUOBAT 120+

Item no. 099271

Lower batten for Duobat 120+ sports floor. Must be used in combination with an upper batten. The system is constructed as a double layer batten system.

Bundles of 16 pcs. (length 3.364 m).

START BATTEN, DUOBAT 120+

Item no. 099274

Start batten for Duobat 120+ sports floor system.
The batten is used perpendicular to the gable.

Bundles of 16 pcs. (8 pcs. of 3.196 m and 8 pcs. of 1.514 m).

GABLE  BATTEN UNOBAT 62+ / DUOBAT 120+
FACE WALL BATTEN DUOBAT 120+

Item no. 099272

Unobat 62+ & Duobat 120+: The batten is used for the first row parallel to gables.
Duobat 120+: The batten is used for the first row parallel to face walls.

Bundles of 16 pcs. (length 3.6 m).

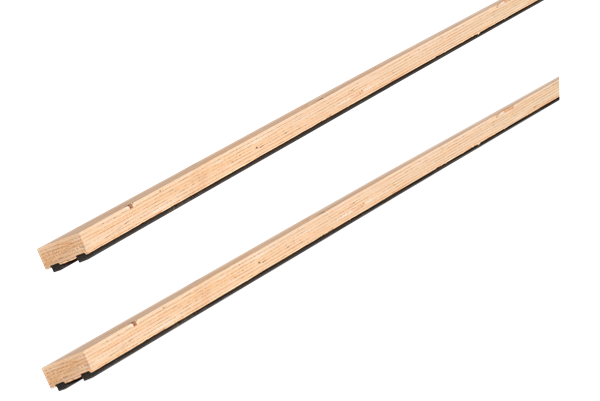

UNOBAT 45 / 50 BATTEN

​Item no. 097800: Unobat 50 batten
Height x width x length: 21 x 45 x 3600 mm (Total batten height foam included: 28 mm)

Item no. 098800: Unobat 45 batten
Height x width x length: 19 x 45 x 3600 (Total batten height foam included: 23 mm)

9 mm pre-attached shock absorbing foam strips are inset into a “U” shaped channel on the underside of the batten.

Bundles of 16 pcs. (length 3.6 m).

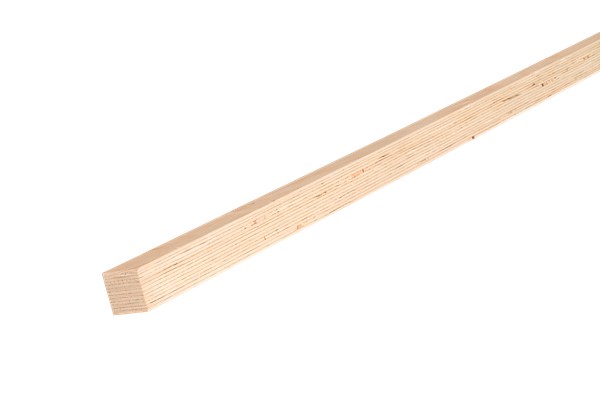

UNOBAT 53 / 68 / 80 BATTENS


Item number
Dimension, h x w

UNOBAT 53
P099293
31 x 45 mm

UNOBAT 68
P099294
46 x 45 mm

UNOBAT 80
P099295
58 x 45 mm

Bundles of 10 pcs. (length 2.4 m).

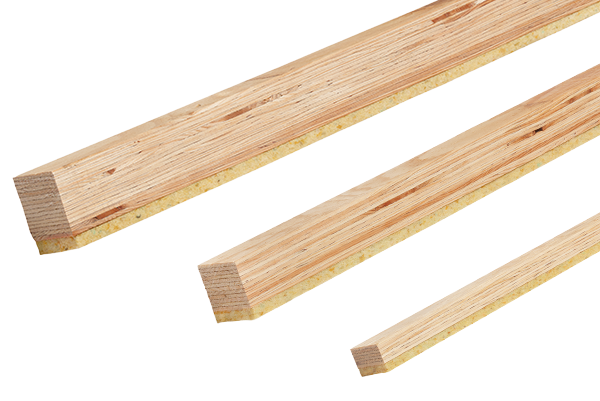

BLUBAT BATTENS

Item number
Dimension, h x w

099283
30 x 45 mm

099284
45 x 45 mm

099285
57 x 45 mm

Bundles of 10 pcs. (length 2.4 m).

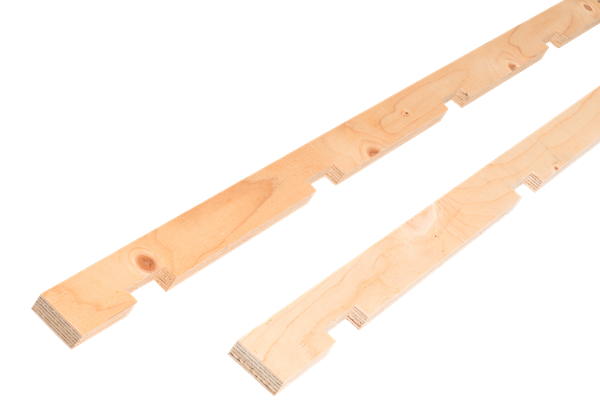

SPACING BATTENS

Tool to help keeping required batten centres.

Item numbers

Batten distance
c/c 336 mm
c/c 411 mm
c/c 400 mm

Unobat 62+
099263
099264

Duobat 120+


099275

Unobat 45 / 53 / 68 / 80
099289
099279

Unobat 50
099289

Blubat
099289
099279

Bundles of 16 pcs. (length 3.6 m).

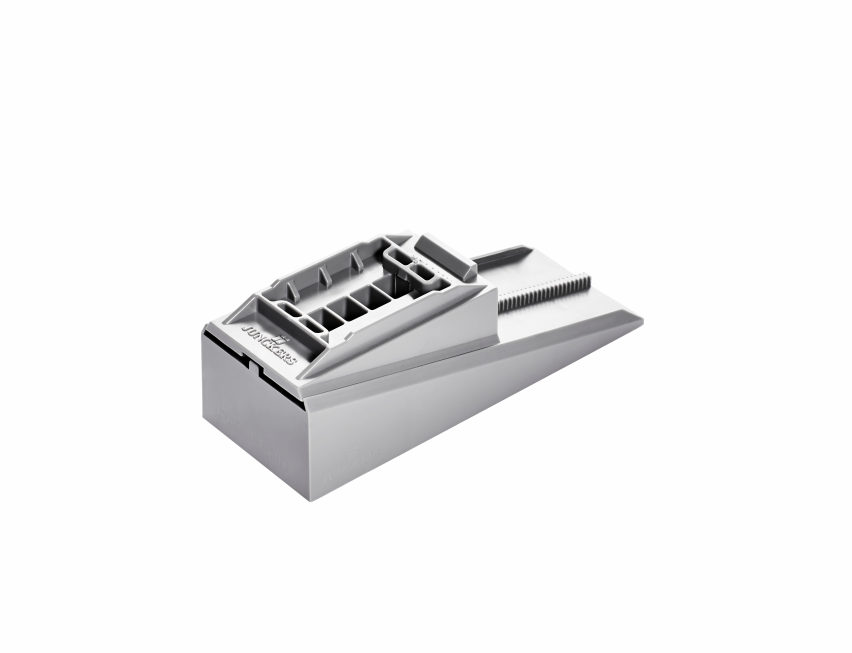

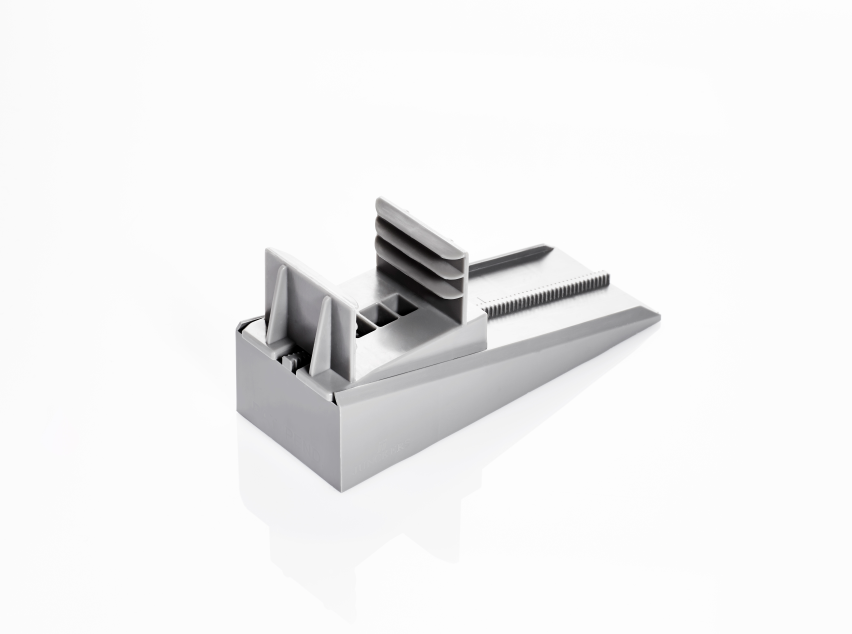

J-LOCK WEDGES FOR UNOBAT 62+

Item no. 099401

Product: LDPE, Low Density Polyethylene.

Adjustable wedge to be clicked onto shock pads prefixed on the batten. The J-Lock wedge allows for the quick correction of uneven subfloors into flat, ideal playing surfaces. Levelling the floor is conducted without use of nails and tools.

Pack size: 150 pcs.

LOOSE J-LOCKS FOR UNOBAT 62+

Item no. 099266

Product: ABS, Acrylnitril-Butadien-Styren

Snap the J-Locks to the shock pads prefixed on the battens. For use, when the J-Lock wedge is not to be used in the installation.

Pack size: 500 pcs.

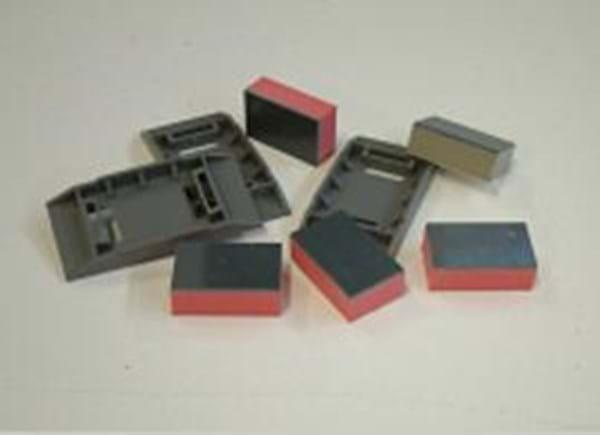

LOOSE J-LOCKS AND SHOCK PADS

Item no. 099265

For Junckers Unobat 62+ and Duobat 120+ sports floor system.

Pack size: 100 pcs. of J-Locks and 100 pcs. of shock pads.

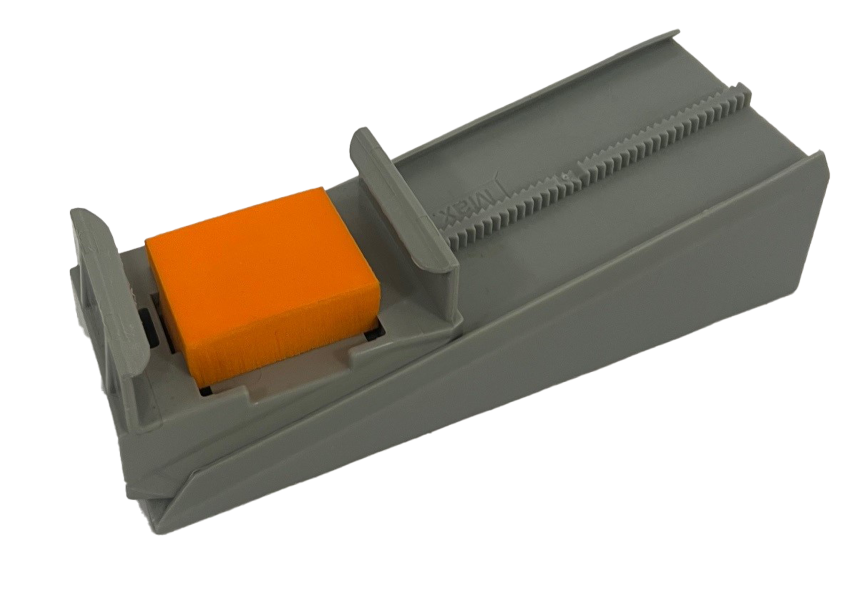

DUO WEDGES FOR DUOBAT 120+

Item no. 099403

Product: LDPE, Low Density Polyethylene.

The lower Duobat 120+ batten rests in this adjustable and locking DuoWedge cradle, making it easy to correct even the most complicated subfloors into flat, ideal playing surfaces. Levelling the floor is carried out without use of nails and tools.

Pack size:150 pcs.

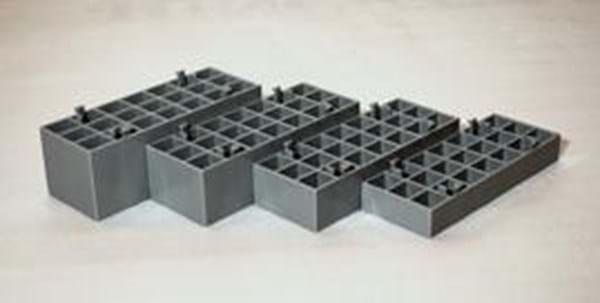

SUPPORT BASES, J-LOCKS WEDGES & DUO WEDGES

Product: LDPE, Low Density Polyethylene.

Support bases to increase floor height of the Unobat 62+ and DuoBat 120+ sports floor system.

Item number
Dimension
Pack size

099406
20 mm
150 pcs

099407
30 mm
150 pcs

099408
40 mm
100 pcs

099409
50 mm
100 pcs

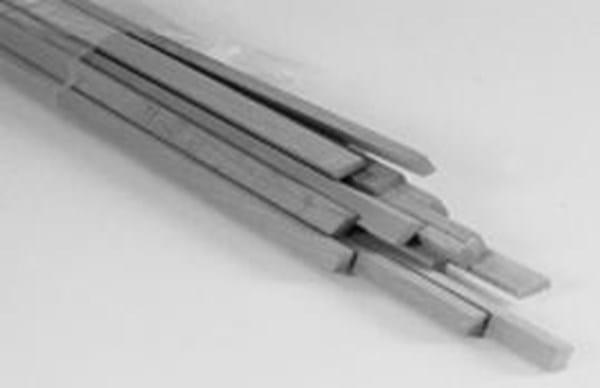

LOOSE TONGUE

Item no. 095900

Loose tongues made of beech wood. For use with 20.5 and 22 mm flooring.
Dimension: 6 x 12 mm.

Pack size: 15 pcs x 600 mm (9 linear metres.)

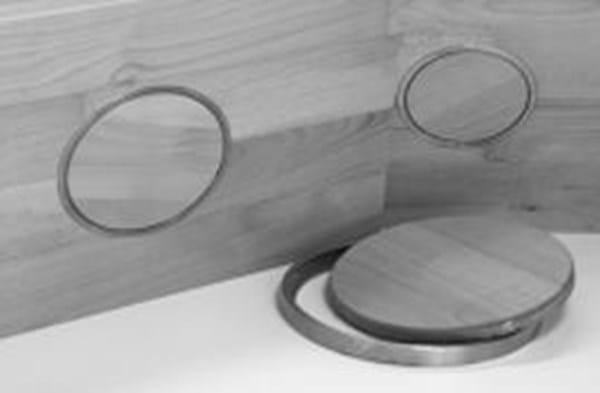

BUSHINGS

Bushing with frame in brass colour and cover/lid in beech.

Item number
Inner/outer diameter

Pack size

099115
Ø 75 mm /
Ø 95 mm
1 pcs

099116
Ø 106 mm /
Ø 126 mm
1 pcs

099117
Ø 150 mm /
Ø 170 mm
1 pcs

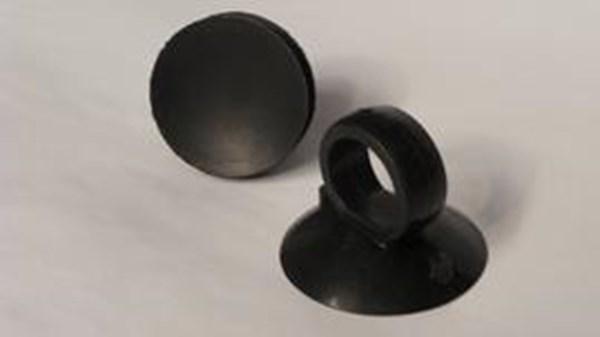

SUCTION CUP

Item no. 099114

Rubber suction cup to lift up the lid of the bushing.

Pack size: 1 pcs.

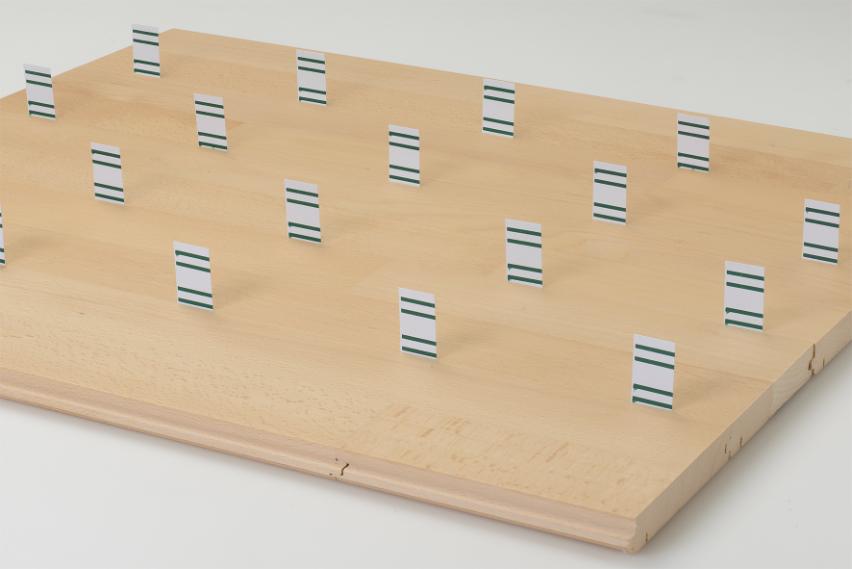

SPACERS

To keep the required 10 board measurement, 10-BM.

Item number
Dimension
Pack size

099031
0.2 mm
300 pcs

099032
0.4 mm
300 pcs

099033
0.6 mm
300 pcs

099034
0.8 mm
300 pcs

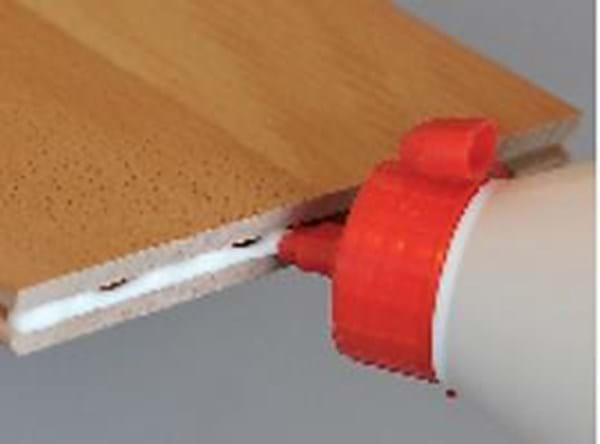

SYLVAFIX HEADER JOINT ADHESIVE

Item no. 099030:

For gluing header joints of the floor boards.

Pack size: 0.75 litres.

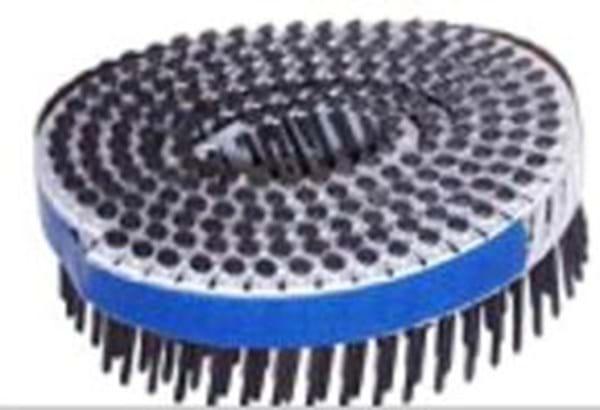

J-NAILS

2.2 x 45 mm machine nails for nailing of 22 and 20.5 mm floors to sports batten systems.

Item number
Pack size

099109
7200 pcs

099107
1200 pcs

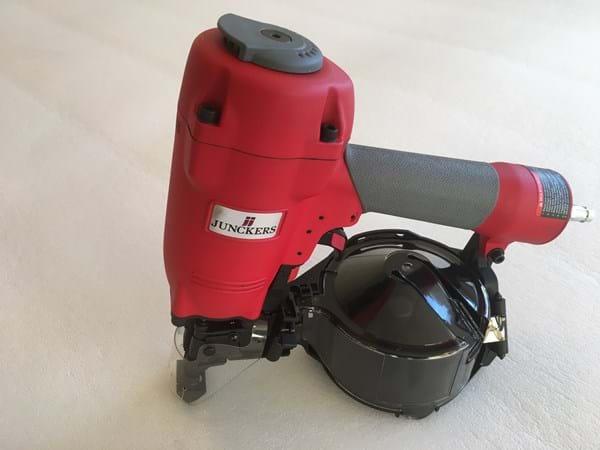

PNEUMATIC NAILER

Item no. 099129

Pneumatic Nailer for Junckers J-nails.



SYLVATHENE MOISTURE BARRIER

Item no. 099039

0.20 mm PE membrane. 4 m wide with marked overlap.

Pack size: Rolls of 100 m². (4 x 25m).



WOODEN BLOCKS FOR FACE WALL BATTEN

Item no. 099048

Wooden blocks to support of Duobat 120+ Face Wall battens.
Dimension: 40 x 60 x 14 mm

Pack size: 70 pcs.

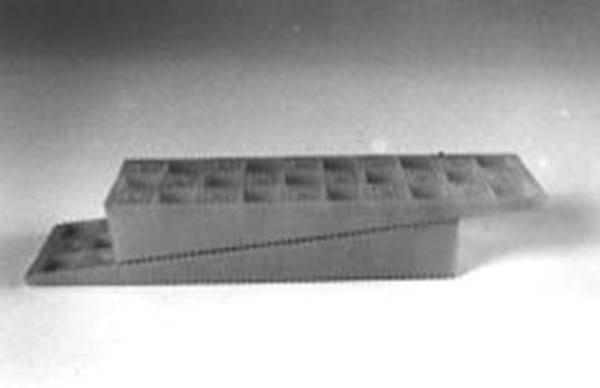

YELLOW WEDGES

Item no. 099001

Plastic wedges to be used as packing material.

Pack size: 162 sets.

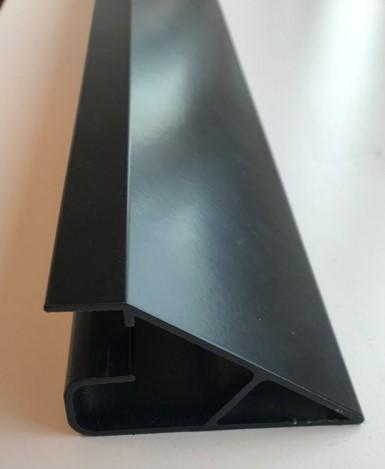

TRANSITION RAMP,  BLACK ALUMINIUM

Can be used together with Unobat 45 sports floors.

Item number

Product


036400
036400R
036400L

Hight 46 mm, Width 80,44 mm,
1950 mm transition ramp, 4 pcs
1950 mm transition ramp to fit right corner panel, 4 pcs
1950 mm transition ramp to fit left corner panel, 4 pcs

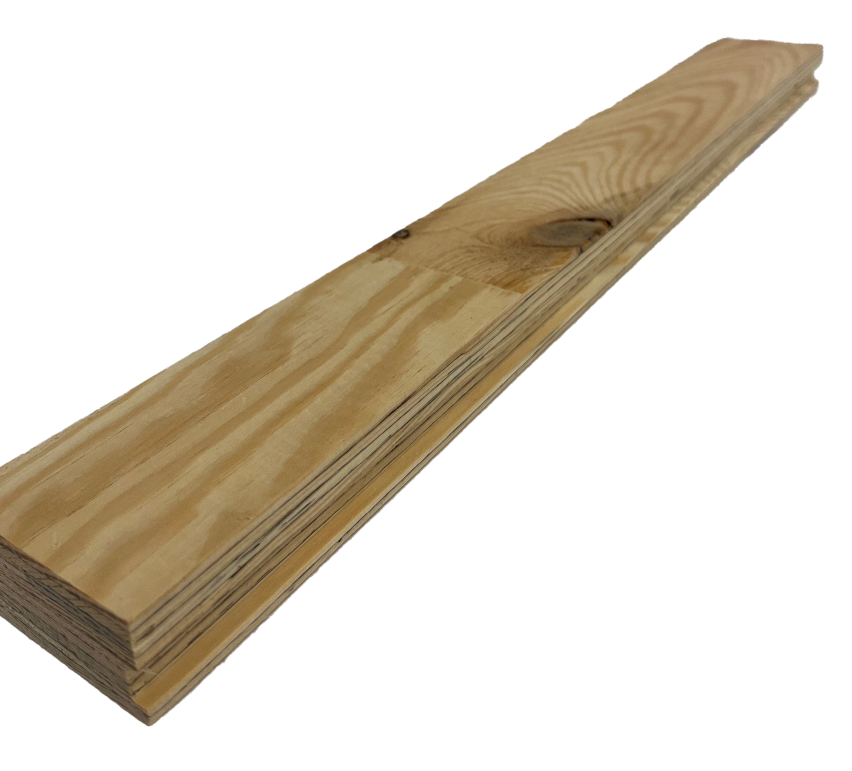

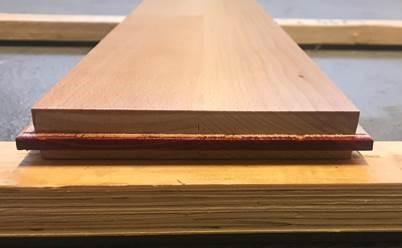

CENTER ROW BOARD

Floorboard with a tongue on both sides.
An easy-to-use alternative to the traditional loose tongue/adhesive method, when starting installation from the centre of the sports hall.

Item number

Product

501299-185


22 x 125 mm Beech premium, silk-matt (4 x 3700 mm/pack (1,85 m²).
