INTRODUCTION

These guidelines concern Junckers sports floor systems installed over underfloor heating.

Please note that full documentation of a sports floor system with a built-in underfloor heating system comprises information in E 4.0, E 4.4, see table 1. It is also recommeded to read about the individual sports floor systems found in chapter D.


MOISTURE CONTENT IN WOODEN BASED MATERIALS

Battens and other wooden based materials included in substructures with underfloor heating systems should generally have lower moisture content than normally specified.

This because the wood will dry out more – in ideal conditions max. 10 %. Laminated battens supplied with Junckers Sports Floor Systems with a moisture content of 8-10 % are therefore particularly suitable.

Insulation up to the underside of the heat-distribution plates and heating pipes will reduce the heat loss.


UNOBAT 45 AND BLUBAT 52

Unobat 45 and Blubat 52 sports floor systems can be laid on concrete or screeded subfloors with cast-in heating pipes or cables. It is extremely important that the floor heating system is designed to achieve a stable temperature across the surface of the concrete or screed. The following applies to heating pipes in concrete or screeded floors:

To ensure an even temperature distribution on casting there must be min. 30 mm of concrete or screed above the heating pipes. The pipes should not be spaced more than 300 mm apart, and the cables not more than 150 mm apart.

The residual moisture contained in the concrete or screed should not exceed 90 % RH (UK: max. 75 % RH acc. to BS 8201, when checked by measurement).

Moisture barrier: All overlaps must be taped using 50 mm wide tape.

For detailed sports floor system information, see D 11.1 Blubat and Unobat 45 D 6.1.

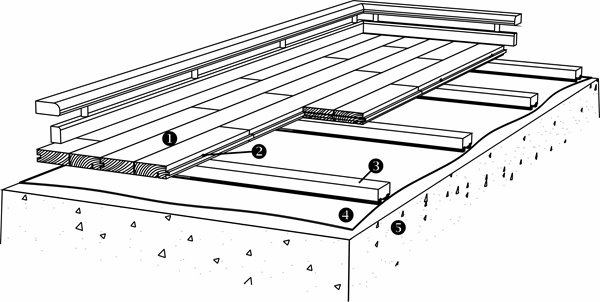

FLOOR COMPONENTS

  1. Junckers 2-strip solid hardwood floor boards for sport
  2. Junckers J-Nails (Machine nail), 22 x 45 mm
  3. Laminated battens
    Unobat 45, thickness 23 mm
    Blubat 52, thickness 30 mm
  4. Moisture barrier
    0.20 mm PE membrane
  5. Subfloor
    Concrete with embedded heating pipes or cables

Fig. 1


CLIP SPORTS FLOORS

The Clip Sports Floor System can be laid on concrete or screeded subfloors with castin heating pipes or cables. It is extremely important that the floor heating system is designed to achieve a stable temperature across the surface of the concrete or screed. The following applies to heating pipes in concrete or screeded floors:

To ensure an even temperature distribution, on casting there must be min. 30 mm of concrete or screed above the heating pipes. The pipes should not be spaced more than 300 mm apart, and the cables not more than 150 mm apart. The residual moisture contained in the concrete or screed should not exceed 90% RH (UK: max. 75% RH acc. to BS 8201, when checked by measurement).

Moisture barrier: All overlaps must be taped using 50 mm wide tape. For detailed sports floor system information, see D 2.1.

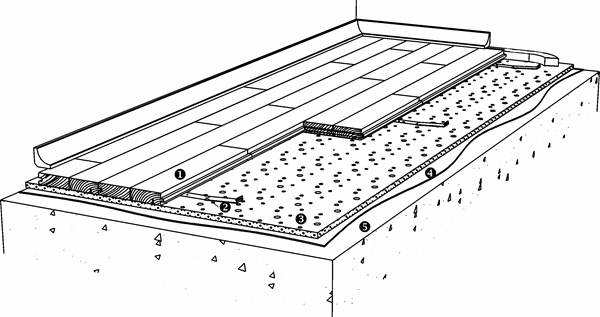

FLOOR COMPONENTS

  1. Junckers 2-strip solid hardwood floor boards for sport
  2.  Clips
  3. Intermediate layer
    10 mm
  4. Moisture barrier
    0.20 mm PE membrane
  5. Subfloor
    Concrete with embedded heating pipes or cables

Fig. 2


UNOBAT 62+

Unobat 62+ with an underfloor heating system built in between battens. The heating pipes are laid on a 50 mm hard plate of insulation. To ensure an even temperature distribution, the pipes should not be spaced more than 300 mm apart.

The residual moisture contained in the concrete or screed should not exceed 90 % RH (UK: max 75 % RH acc. to BS 8201 when checked by measurement).

Moisture barrier: All overlaps must be taped using 50 mm wide tape.

For detailed sports floor system information see D 8.1.

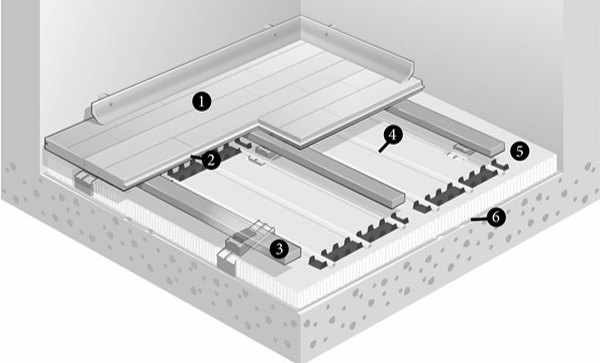

FLOOR COMPONENTS

  1. Junckers 2-strip solid hardwood floor boards for sport
  2. Junckers J-Nails (Machine nail),
    22 x 45 mm
  3. Laminated battens, 25,5 mm
  4. Heating Pipes
  5. Insulation,
    20-50 mm thickness
  6. Moisture barrier
    0,20 mm PE Membrane

Fig. 3


DUOBAT 120+

The Junckers sports floor system Duobat 120+ with an underfloor heating system built in between battens. The heating pipes are laid on a 50 mm hard plate of insulation. To ensure an even temperature distribution, the pipes should not be spaced more than 300 mm apart.

The residual moisture contained in the concrete or screed should not exceed 90 % RH (UK: max 75 % RH acc. to BS 8201 when checked by measurement).

Moisture barrier: All overlaps must be taped using 50 mm wide tape.

For detailed sports floor system information see D 7.1.

FLOOR COMPONENTS

  1. Junckers 2-strip solid hardwood floor boards for sport
  2. Junckers J-Nails (Machine nail),
    22 x 45 mm
  3. Laminated battens,
    Upper: 25,5 mm
    Lower: 39 mm
  4. Heating Pipes
  5. Insulation
    20-50 mm thickness
  6. Moisture barrier
    0,20 mm PE Membrane

Fig. 4
